FBX

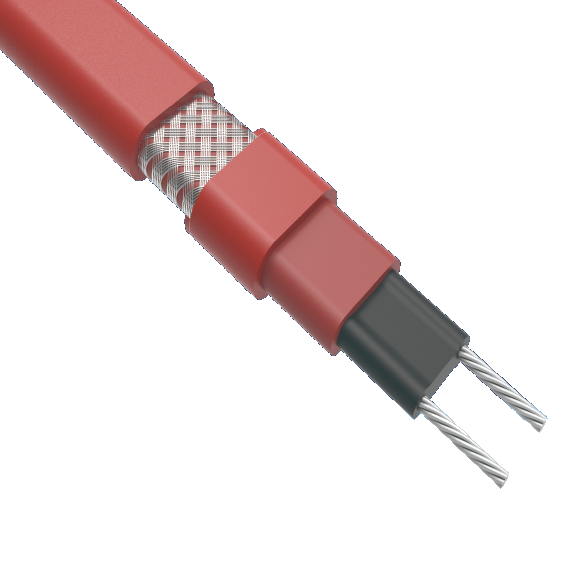

FBX Self-regulating heating cable

  • Freeze protection for various pipeline under steam purging process.

  • Temperature maintenance for petrochemical and gas plant.

  • Medium or heavy duty heat-up process ex) hopper heater.

  • Use in hazardous and non-hazardous location.

  • It will not burn or overheat even when overlapped.

  • It self-regulates thermal performance in response to temperature.

  • It can be cut to any length to suit any installation condition.

  • Independent heat output control along the length.

  • Soft power switching for energy saving as well as longer service life.

  • Easy termination for power connection and splicing.

  • Max. maintain temperature (Power-on) 150°C (302°F)

  • Use in hazardous and non-hazardous location

  • Max. withstand temperature (Power-off) 200°C (392°F)

  • Min. installation temperature -60°C

  • Temperature classification ( T- rating )

    • FBX15x, 30x, 45x : T3 (200°C)

    • FBX60x                  : T2 (220°C)

  • Rated voltage: 100 ~ 120 Vac, 200 ~ 277 Vac

  • Rated power output: 15, 30, 45 and 60 watt/m@10°C

  • Dimension(nom.) : 12.2mm x 4.8mm

  • Bus wire - ASTM B355 Class 2 NPC AWG16

  • Outer iacket

    • Fluoropolymer(CT) : Exposure to organic chemicals or corrosives
